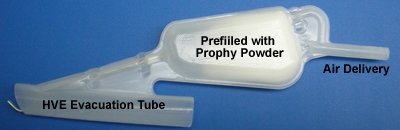

The innovative ProphyMaster™ tip is a NO MESS™ waterless disposable Air Polishing Prophylaxis tip for Full Mouth stain removal of extrinsic stain, dental plaque and soft debris while simultaneously polishing tooth surfaces. The ProphyMaster tip is integrated with a High Speed Evacuator tube thereby collecting a significant portion of the aerated powder dust as it ricochets off the tooth surface.
Each ProphyMaster™ tip combines the suctioning power of the chairside high-speed evacuation and the chairside low-speed air supply to provide minimal overspray in a single-handed operation. Flow control is via the chair foot pedal and the ProphyMaster™ tips come prefilled with standard Sodium Bicarbonate or non-sodium prophy powder.

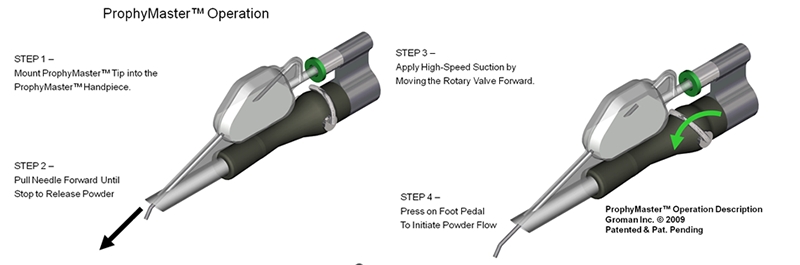

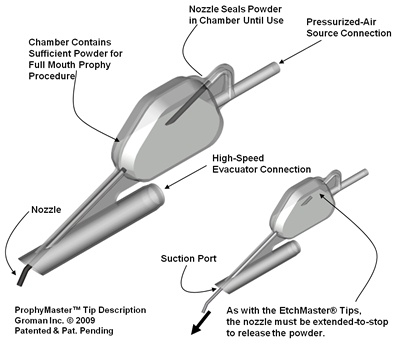

The ProphyMaster™ nozzle acts as a cork sealing the prophy powder within the ProphyMaster™ chamber until it is mounted on the adapter. When ready for use, simply pull the nozzle forward-to-stop to release the abrasive powder.
The ProphyMaster™ Starter Kit carries our Adapter Lifetime Warranty and 10 FREE Tips: 3 GREEN and 3 YELLOW prophy powder ProphyMaster™ Tips plus 2 RED and 2 BLUE (one Large & on Small) EtchMaster® Tips.

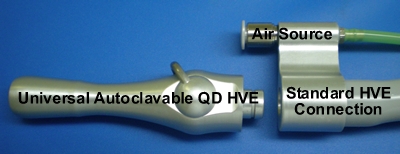

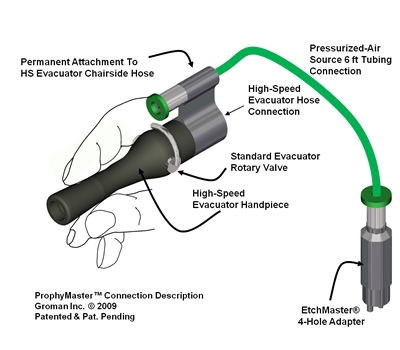

The ProphyMaster Adapter has two components:
HVE evacuation- The ProphyMaster Adapter mounts onto the standard High-Speed Evacuator chairside hose. Simply remove the evacuator tubing at your existing chair and mount onto the ProphyMaster™ adapter. The Universal Autoclavable QD HVE is made of
Air Source is provided directly from the standard chairside low-speed handpiece connection using a 4-Hole adapter (compatible with 2, 3, 4, 5, and 6 hole adapters). The green air source tubing mounted to the ProphyMaster™ adapter is simply pushed into the 4-Hole adapter to connect the pressurized air source to the ProphyMaster™ adapter . The air flow to ProphyMaster™ tips is controlled via the standard chairside foot pedal.
EXTRA- The 4-Hole adapter is fully compatible with the EtchMaster® tips. By simply removing the green tubing from the 4-Hole adapter and inserting an EtchMaster® tip it is possible to perform intra-oral etching prior to sealants using the RED hard abrasive tips and the removal of stubborn stain using the BLUE mild abrasive tips. NOTE: Check your state's regulations for compliance with hygienists performing procedures using the hard and mild abrasive tips.
